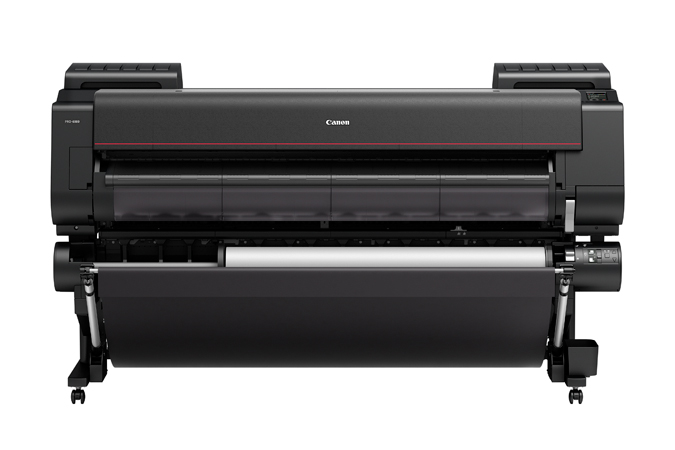

imagePROGRAF PRO-6000

Built upon the advanced Canon PRO printing platform, the 60-inch imagePROGRAF PRO-6000 is the next generation 60" large format printer the industry has been waiting for. High quality printing, a wide color gamut, sophisticated color management functions and innovative media handling solutions all come together into a single, seamless system that is ideal for producing massive prints that look as equally stunning up close as they do from across the room.

The 1.28-inch wide 12-channel integrated compact print head, LUCIA PRO ink set plus Chroma Optimizer, a high-precision mechanical platform and the L-COA PRO high-speed image processing engine achieve a balance between exceptional print quality and speed.

These unique Canon technologies and innovations establish the foundation for an ultra-high quality photography imaging solution that is available only from Canon. Powered by a Canon-to-Canon workflow that links images captured with an EOS Digital Camera and printed on an imagePROGRAF PRO Series printer, the result is a solution that delivers prints that capture the moment and emotion of the original image. The overwhelmingly high print quality produced by this input to output solution is called Crystal-fidelity.

Canon iPF PRO-6000

Features

  • LUCIA PRO Ink Set
  • No Switching of Black Inks
  • PF-10 Print Head
  • L-COA PRO High-Speed Image Processing Engine
  • Color Calibration
  • High Precision Mechanical Platform
  • Multifunction Roll System
  • Effortless Media Loading
  • Print Studio Pro Software
  • Operation Panel
  • Wi-Fi Connection
  • Print From USB Thumb Drive
  • High Capacity Ink Tanks
  • Sub-Ink Tank System
  • Multipositional Basket
  • 320GB Hard Drive
  • Media Configuration Tool
  • Accounting Manager
  • imagePROGRAF Printer Driver
  • Print Plug-in for Microsoft Office
  • Quick Utility Toolbox

Specifications

Printer Type

11-Color plus Chroma Optimizer 60-inch Printer

Number of Nozzles

Total: 18,432
All colors: 1,536 nozzles

Nozzle Pitch

600 dpi x 2
Non-firing nozzle detection and compensation

Print Resolution (Up to)

2400×1200dpi (Max)

OS Compatibility

32bit: Windows® (Vista/7/8, 8.1/10)
64bit: Windows® (Vista/7/8, 8.1/10)
Mac (OS X 10.7.5-10.11x)
Mac (OS 10.12)

Standard Interfaces

USB 2.0 High-Speed
10/100/1000 Base-T/TX Wireless LAN (IEEE 802.11 b/g/n)
USB Thumb Drive

Ink Droplet Size

minimum 4 picoliter

Ink Capacity

160, 330, or 700ml per color

Ink Droplet Size

Pigment based LUCIA PRO Ink

Color Set

Photo Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Gray, Photo Gray, Red, Blue, +Chroma Optimizer

Hard Drive

320GB

Media Width

Cut Sheet - 8- 60
Roll Feed - 8 - 60

Media Thickness

Roll: 0.07 - 0.8 mm (2.8 - 31.5mil)

Maximum Roll Print Length

Roll Feed - 59' (18 meters)

Maximum Media Roll Diameter

6.7 (170mm)

Borderless Printing Width

(Roll Media Only) 10, 14, 17, B2 (20.3/515 mm), A1 (23.4/594mm), A0 (33.11841mm), 24, 36, B0 (40.6/1,030mm), 42,44, 60

Paper Feed Method

Roll Feed: One Roll, Front-loading, Front Output Manual Feed: Front-loading, Front Output

Languages

Swift Graphic Raster (SGRaster)

Noise Level Approx

Operation: 50 dB (A) or less
Accoustic Power: 6.7 Bels or less

Physical Dimensions

46.0 (H) x 78.7 (W) x 38.7 (D) (with basket open)

Weight

approx.368 lbs (roll holder included, no inks, no print heads)

Power Source

AC 100-240V(50-60Hz)

Power Consumption

Maximum: 103 W or less
Standby 3.6 W or less
Power Off: 0.3 W or less

Operating Environment

Temperature: 59 - 86°F
Relative Humidity: 10-80% (No Condensation)

User-replaceable items

Print Head (PF-10)
Maintenance Cartridge (MC-30)
Ink Tanks (PFI-1100/PFI-1300/PFI-1700)

Software Included

imagePROGRAF Printer Driver, Print Studio Pro, Quick Utility Toolbox, Print Plug-In for Office, Accounting Manager, Device Management Console, Media Configuration Tool, Printer Driver Extra Kit (Free Layout and Advanced Preview), Print Plug-in for Microsoft Word/Excel/PowerPoint (PC only), Gallery Wrap Feature, Direct Print & Share4
