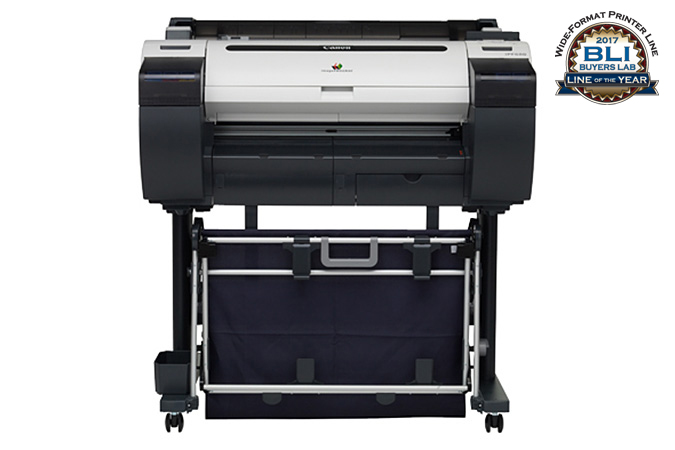

imagePROGRAF iPF680

The Canon imagePROGRAF iPF680 24-inch large format printer builds on Canon’s award winning line of 5-color printers, and provides enhancements in both hardware, and software capabilities. The iPF680 device is capable of producing an Arch D (24” x 36”) print in up to 25 seconds using Economy mode! The printer has the capability of accommodating 300ml ink tanks, geared towards lowering the cost per print. The included Sub-ink tank system allows for users to use all of the ink in the tank before replacing, while also replacing the empty ink tanks on-the-fly without having to stop a job mid-print and sacrifice print quality.

From a software perspective, the iPF680 printer comes loaded with user-friendly software solutions that are ready to be used right out of the box. Direct Print & Share, Canon's cloud-based portal solution, is available as a download and allows for files to be uploaded, downloaded, shared and printed from almost anywhere in the world! Also downloadable is a mobile printing app, imagePROGRAF Print Utility, allows for PDFs to be printed through use of an Apple© iPad©. The Accounting Manager software allows users to track job costs, while the Print Plug-in for Microsoft Office enables for documents created with Word, Excel or Powerpoint to be printed in large format. And to improve versatility, the iPF680 printer has a Media Configuration Tool which allows customers to optimally utilize their Canon-branded media in creating their desired output.
Canon iPF680

Features

  • Dye/Pigment Reactive Ink Set
  • High-Speed Printing
  • Large Capacity Ink Tanks
  • Sub-Ink Tank System
  • Economy Print Mode
  • Flat Stacker/Basket
  • Precision Printing: High-Density PF-04 Print Head
  • Direct Print & Share
  • imagePROGRAF Print Utility
  • Canon Printer Driver
  • Status Monitor
  • Accounting Manager
  • PosterArtist Lite
  • PosterArtist
  • Print Plug-In for Microsoft® Office®
  • Optimized Module for AutoCAD

Specifications

Printer Type 5-Color 24-inch Printer
Number of Nozzles Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch 1,200 dpi
Non-firing nozzle detection and compensation
Print Resolution (Up to) 2,400 x 1,200 dpi (Max)
OS Compatibility Windows® (XP/Vista/7/8)
Macintosh® (OSX 10.6.8-10.9X)
Standard Interfaces USB 2.0 High-Speed
10/100/1000 Base-T/TX
Ink Droplet Size 4 picoliter
Ink Capacity 130ml or 300ml per color
Ink Droplet Size Dye/Pigment Reactive Ink
Color Set Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte Black
Buffer Ram 256MB
Media Width Cut Sheet - 8"- 24" (203.2mm - 610mm)
Roll Feed - 10" - 24" (254mm - 610mm)
Media Thickness 0.07-0.8mm (2.8-31.4mil)
Maximum Roll Print Length Roll Feed - 59' (18 meters)
Cut Sheet - 63" (1.6 meters)
Maximum Media Roll Diameter 5.9" (150mm)
Borderless Printing Width 10", B4, A3, 14", A2, 17", B2 (20.28"/515 mm), A1 (23.38"/594mm), 24"
Paper Feed Method Roll Feed: One Roll, Top-loading, Front output
Cut Sheet: One sheet, Top loading, Front output
Languages GARO (Canon Proprietary), HP-GL/2, HP RTL
Noise Level Approx Operation: 48 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: Approx. 6.5 Bels
Physical Dimensions

42" (H) x 39" (W) x 35" (D) (When basket is open)
42" (H) x 39" (W) x 43" (D) (When basket is extended for flatbed stacking)

Box Dimensions/ Weight: 45" (H) x 44" (W) x 35" (D)
Approximately 205 lbs

Weight Approximately 125lbs. with stand
Power Source AC-100-240V (50-60Hz)
Power Consumption Maximum: 140W or less
Standby 5W or less
Power Off: .5W or less (Compliant with Executive Order)
Operating Environment Temperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80% (No Condensation)
User-replaceable items Print Head: PF-04
Maintenance Cartridge: MC-10
Ink Tanks: PFI-107 (130ml: C, M, Y, BK, MBK), PFI-207 (300ml: C, M, Y, BK, MBK)
Software Included Canon Printer Driver, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Direct Print & Share, imagePROGRAF Print Utility, PosterArtist Lite (PC Only), Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only), Status Monitor, Media Configuration Tool, Optimized Module for AutoCAD
